R6560 Series Crimp Housing 1.25mm PA 66 UL 94V-0 circuit 02 to 30 pin
R6560 Series Crimp Housing 1.25mm PA 66 UL 94V-0 circuit 02 to 30 pin R6561 Series Wafer 1.25mm SMT Right Angle Type gold plated R6561 Series Wafer 1.25mm SMT Right Angle Type tin plated
R6560 Series Crimp Housing 1.25mm PA 66 UL 94V-0 circuit 02 to 30 pin
R6561 Series Wafer 1.25mm SMT Right Angle Type gold plated
R6561 Series Wafer 1.25mm SMT Right Angle Type tin plated

R6560 Series

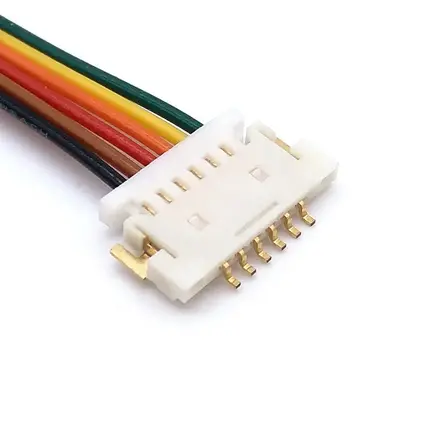

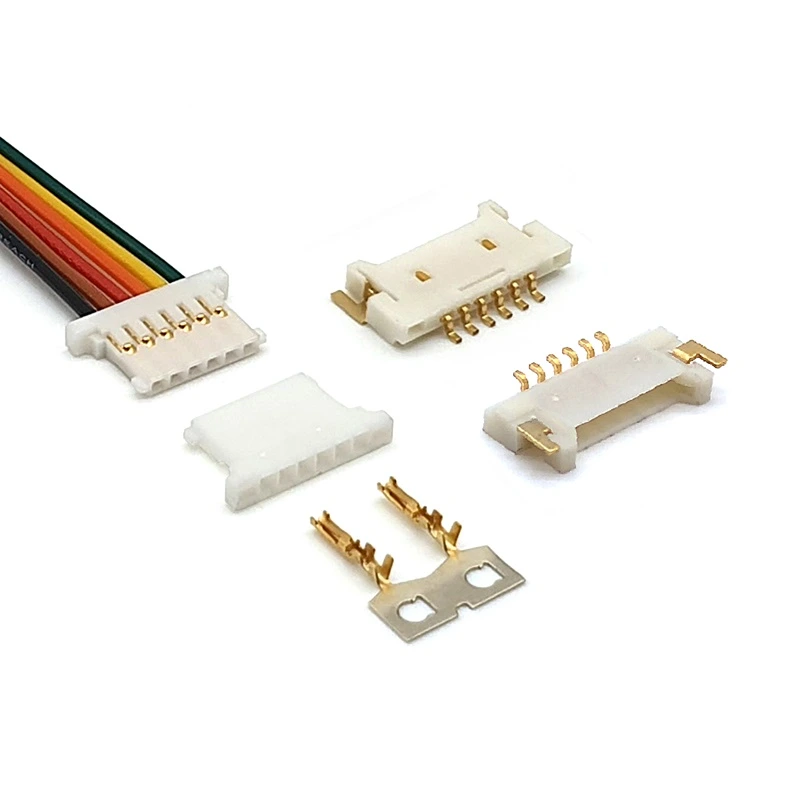

1.25mm Wire to Board Connector

  • Housing : R6560-xxP
  • Wafer : R6561-xxTR-SMT-R (SMT Tin plated, 90° )
        R6561-xxGR-SMT-R (SMT Gold plated, 90° )
  • Terminal : R6563-PG
  • Circuit : 02-30
  • Applicable wire : AWG28~AWG32
  • Insulation O.D : 0.90mm Max.
  • Alternative with Molex 51146 Series
Download PDF

瀏覽更多內容
電氣特性
  • Temperature Range : -25℃~+85℃
  • Current Rating : 1A
  • Voltage Rating : 125V AC
  • Dielectric Withstand Voltage : 500V AC/minute
  • Insulation Resistance : 100MΩ Min.
品質安全認證
RoHS compliant
