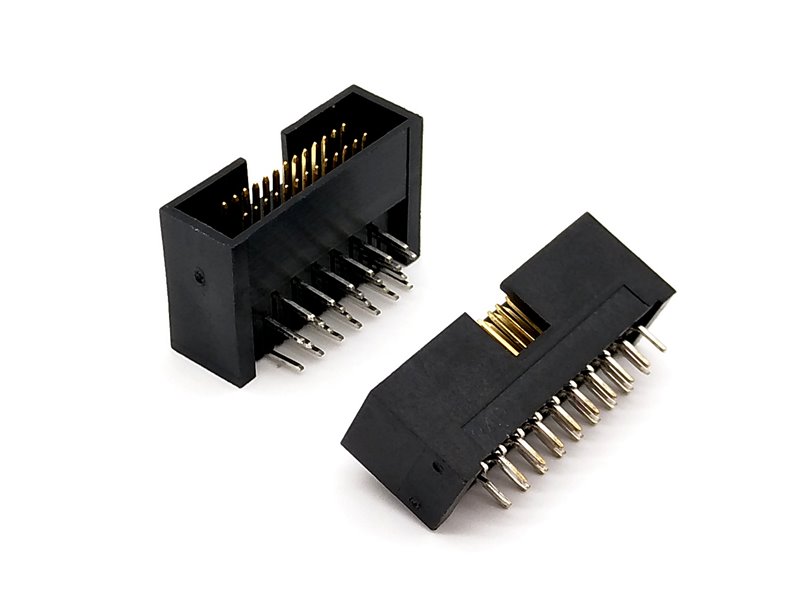

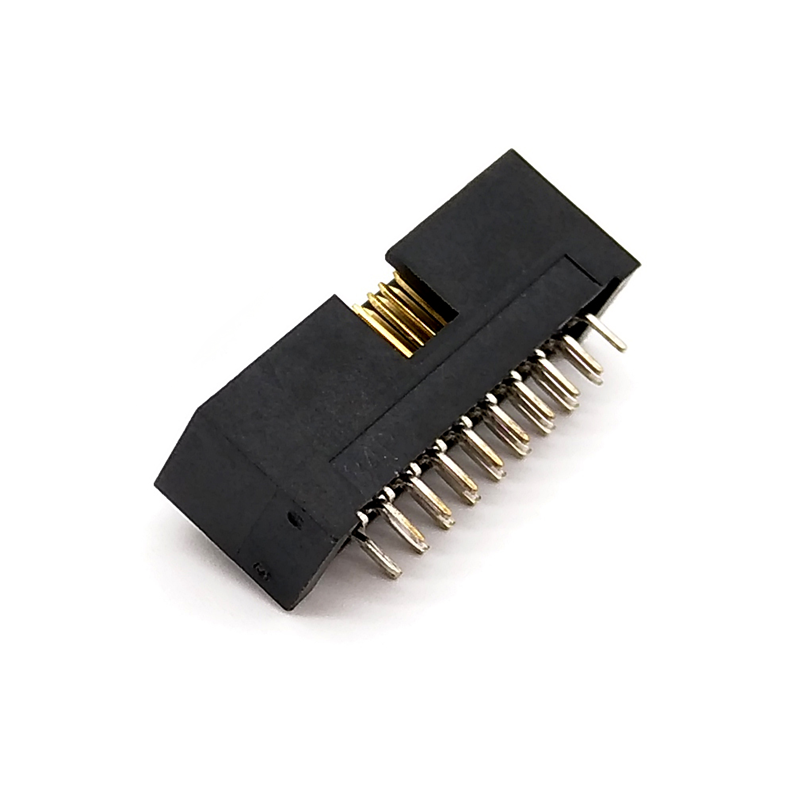

R6610 Series
1.27x2.54mm DIP Type Box Header
| 產品屬性 | 屬性值 |
|---|---|
| 產品編號 | R6610-xxxHS (180°, Height 10.5mm) |
| PIN數 | 10-100 |
| 間距 | 1.27mmx2.54mm (.050"x.100") |
| 絕緣材質 | Nylon 6T, UL 94V-0 |
| 觸點材質 | Copper alloy 0.45mm(.018") square pin |
| 觸點鍍層 | Contact area-Gold plated Solder area-Tin plated Nickel underplated overall |
| 規格書 | 📄 下載產品規格書（PDF） |
電氣特性
| 電氣特性 | 測試值 |
|---|---|
| 使用溫度範圍 (Temperature Range) | -44°C~+105°C |
| 額定電流 (Current Rating) | 1A |
| 絕緣耐電壓 (Dielectric Withstand Voltage) | 500V AC/minute |
| 絕緣電阻 (Insulation Resistance) | 1000MΩ Min. |
品質安全認證
