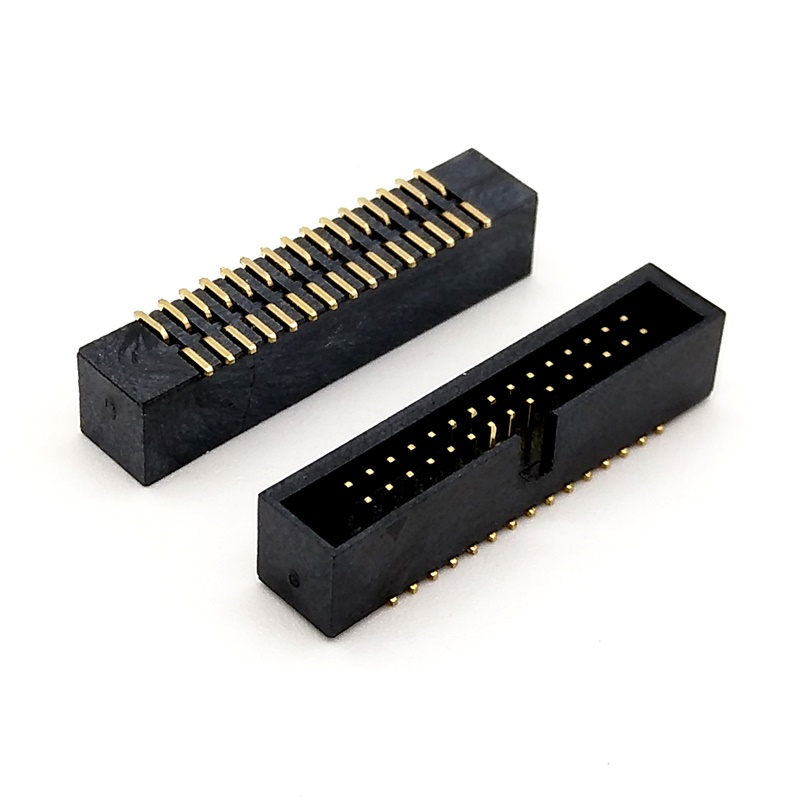

R6715 Series
1.27x1.27mm SMT Type Box Header

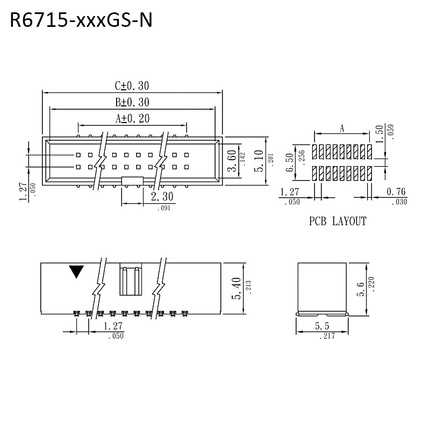

- P/N: R6715-xxxGS-N
R6715-xxxGS-Y (With post)
R6715-xxxGS-N-C (With cap) - Circuit : 10-100
- Insulator : LCP UL 94V-0
- Contact : Copper alloy 0.40mm(.016") square pin
- Plating : Gold plated
電氣特性
Temperature range：-55℃ ~+105℃
Current rating：1.0A
Dielectric withstand voltage : 600V AC/minute
Insulation resistance：1000 MΩ Min.
Current rating：1.0A
Dielectric withstand voltage : 600V AC/minute
Insulation resistance：1000 MΩ Min.
品質安全認證
