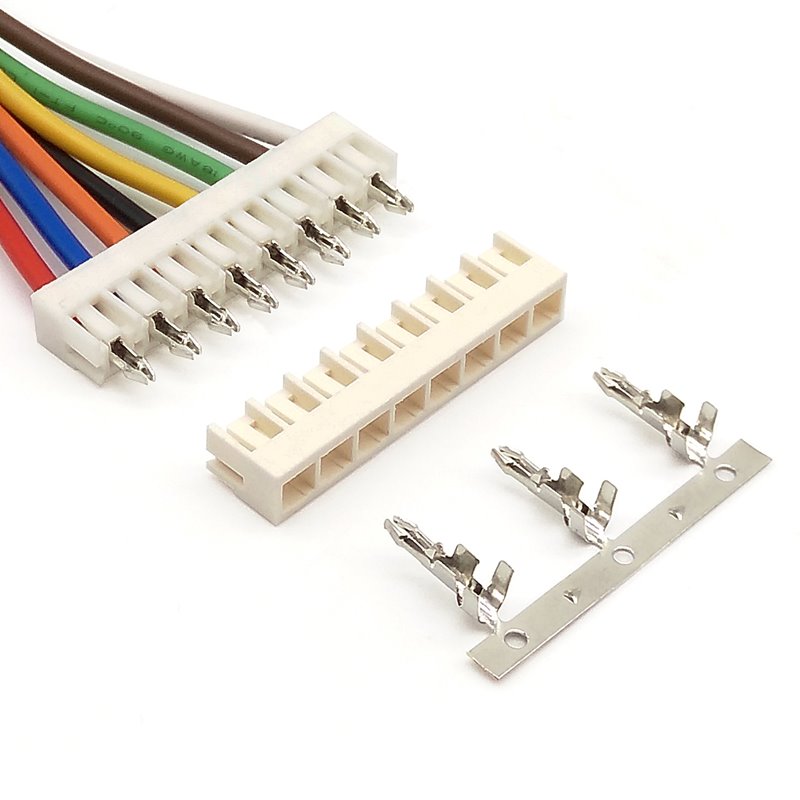

R3950 Series｜3.96mm 02-15P Board in Connector

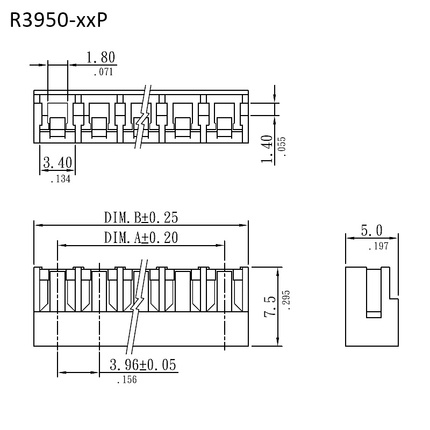

R3950-xxP｜Outline Drawing｜3.96mm Board-in Connector

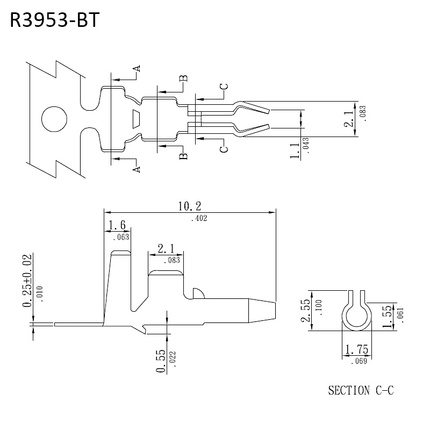

R3953-BT｜Outline Drawing-1｜3.96mm Board-in Crimp Terminal
R3953-BT｜Outline Drawing-2｜3.96mm Board-in Crimp Terminal

R3950 Series

3.96mm Board in Connector

  • Housing : R3950-xxP
  • Terminal : R3953-BT
  • Circuit : 02-15
  • Insulator : Nylon 66, UL 94V-0
  • Applicable wire : 16-22 AWG
  • Insulation O.D : 3.10mm Max.
  • Drop-in alternative to JAM JE40 Series
Download

View More Details
Specification
Temperature range：-25°C ~+120°C
Current rating：7A
Voltage rating：250V AC
Dielectric withstand voltage：800V AC/minute
Insulation resistance：1000MΩ Min.
Safety/Quality Approvals
R3950 Series RoHS Compliant
