USB 4 Type-C Female 24P Right Angle Connector - R2950 C Series
USB 4 Type-C Female 24P Right Angle Connector - R2950 C Series USB 4 Type-C Female 24P Right Angle Connector_Bottom USB 4 Type-C Female 24P Right Angle Connector_Front USB 4 Type-C Female 24P Right Angle Connector_Side

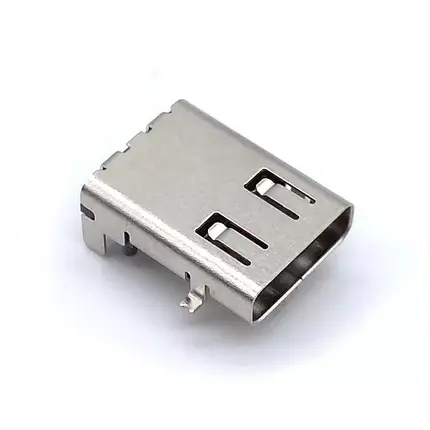

USB 4 Type-C Female 24P Right Angle Connector - R2950 C Series

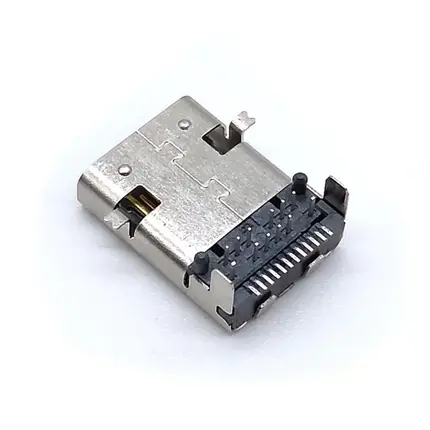

USB 4 Type-C Female 24P Right Angle Connector_Bottom

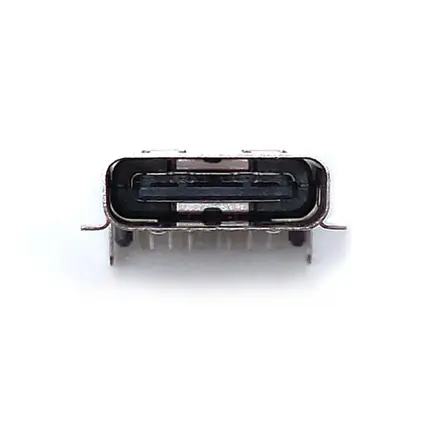

USB 4 Type-C Female 24P Right Angle Connector_Front

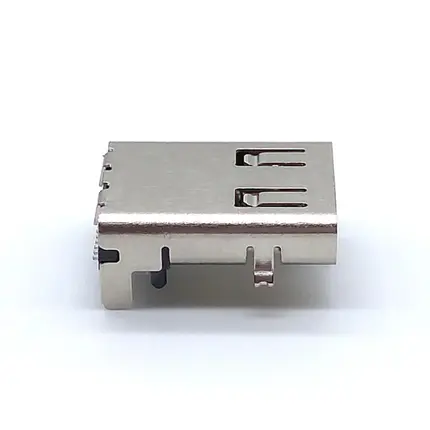

USB 4 Type-C Female 24P Right Angle Connector_Side

R2950-C Series

USB 4 Type-C Female 24P Right Angle

  • Circuit : 24
  • lnsulator : LCP, UL94V-0
  • Contact : Copper Alloy
  • Plating : Gold Flash 30u"
  • Shell : Stainless Steel
  • Durability : 10,000 Cycles
View More Details
Specification
Temperature Range：-40°C to +85°C
Dielectric Withstand Voltage : 100V AC
Insulation Resistance：100MΩ Min.
Safety/Quality Approvals
RoHS compliant
