R6100 Series

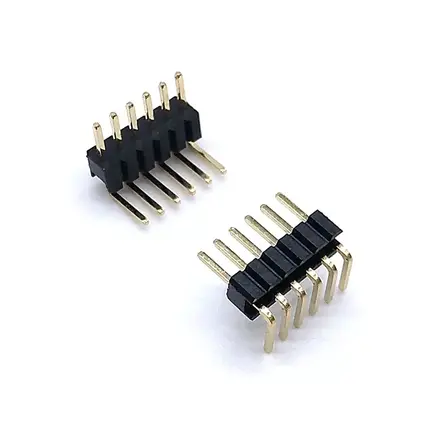

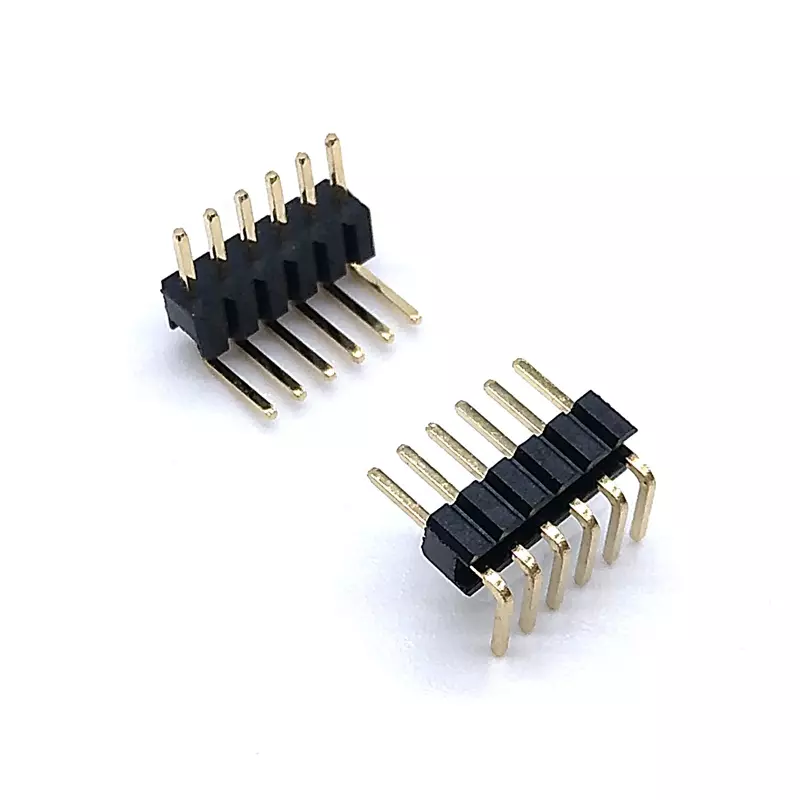

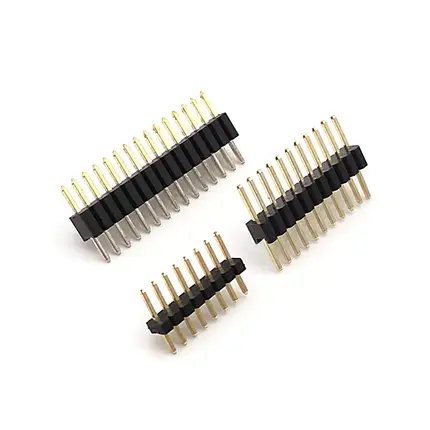

1.27mm Single Row Dip Type Pin Header
- P/N : R6100 (Please refer to the drawings)
- Circuit : 02-40
- Insulator : PBT+GF, UL 94V-0
- Color : Black / White
- Contact : Brass 0.40mm(.025") square pins
- Plating : Tin or Gold plated
Description
The 1.27mm Single Row DIP Type Pin Header from the R6100 Series by Sunny Young Enterprise Co., Ltd. is a high-quality electronic connector designed for a variety of applications. This 1.27mm Pin Header is known for its durability, reliability, and precise engineering, making it an essential component for any electronics project.
Our 1.27mm PCB Header is crafted with meticulous attention to detail, ensuring a secure and stable connection on printed circuit boards (PCBs). The single row design allows for a compact footprint, which is ideal for projects requiring space efficiency without compromising performance.
Specification
Temperature range：-55°C ~+105°C
Current rating：1.0A
Voltage rating : 100V AC
Dielectric withstand voltage : 500V AC/minute
Insulation resistance：1000 MΩ Min.
Contact resistance : 0.02 Ω Max.
Current rating：1.0A
Voltage rating : 100V AC
Dielectric withstand voltage : 500V AC/minute
Insulation resistance：1000 MΩ Min.
Contact resistance : 0.02 Ω Max.
Safety/Quality Approvals
