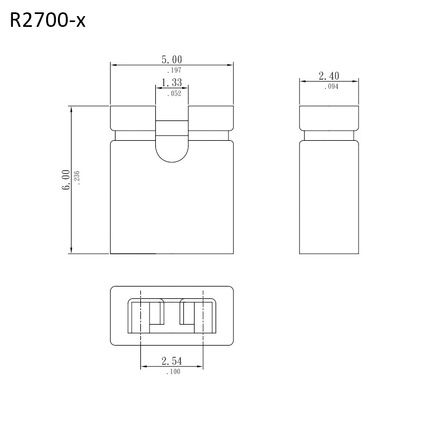

R2700｜Outline Drawing｜2.54mm Mini Jumper

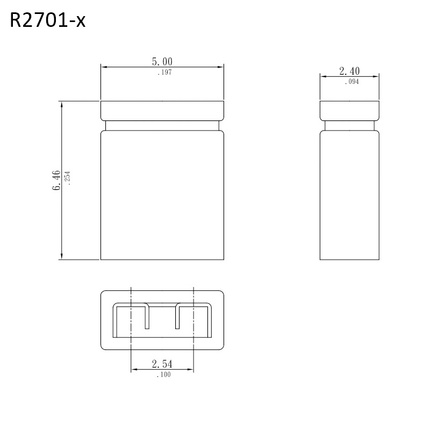

R2701｜Outline Drawing｜2.54mm Mini Jumper

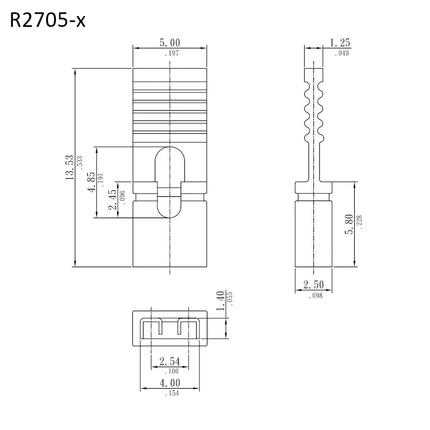

R2705｜Outline Drawing｜2.54mm Mini Jumper

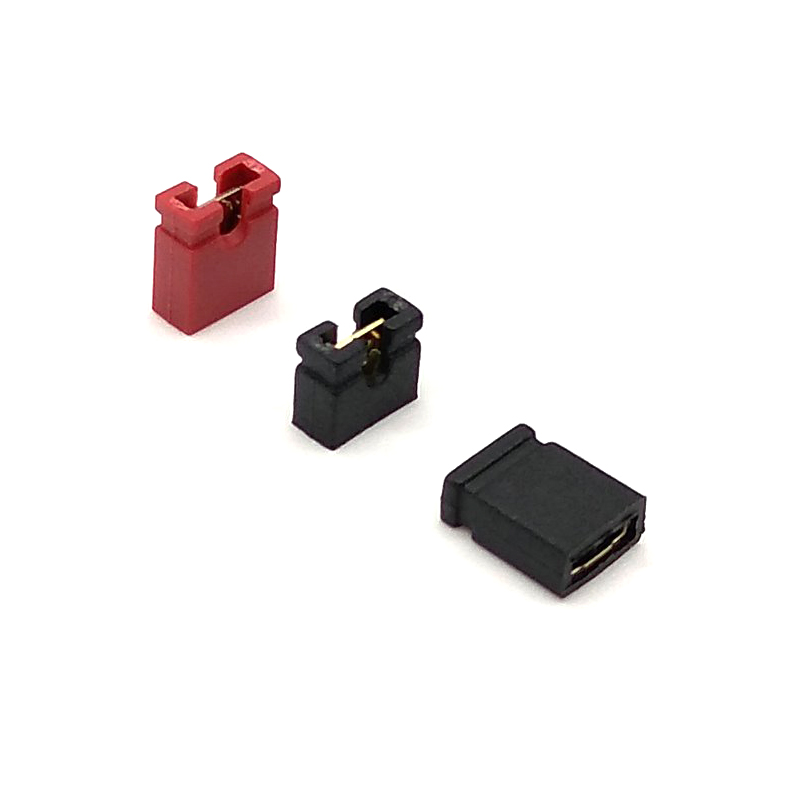

R2700 Series

2.54mm Mini Jumper Open-End/Close-End Type

  • P/N : R2700 (Open-end, H:6.0mm)
      R2701 (Close-end, H:6.46mm)
      R2702 (Open-end, H:4.5mm)
      R2703 (Open-end, H:8.0mm)
      R2704 (Close-end, H:8.5mm)
      R2705 (Open-end, H:13.5mm)
  • Color : Black / Red / Blue / White
  • Insulator : Thermoplastic, UL 94V-0
  • Contact : Copper alloy or Phosphor bronze
  • Plating : Gold plated
Download PDF

View More Details
Specification
Temperature Range：-55℃ ~+105℃
Current Rating：3A
Contact Resistance : 0.03Ω Max.
Safety/Quality Approvals
RoHS compliant
