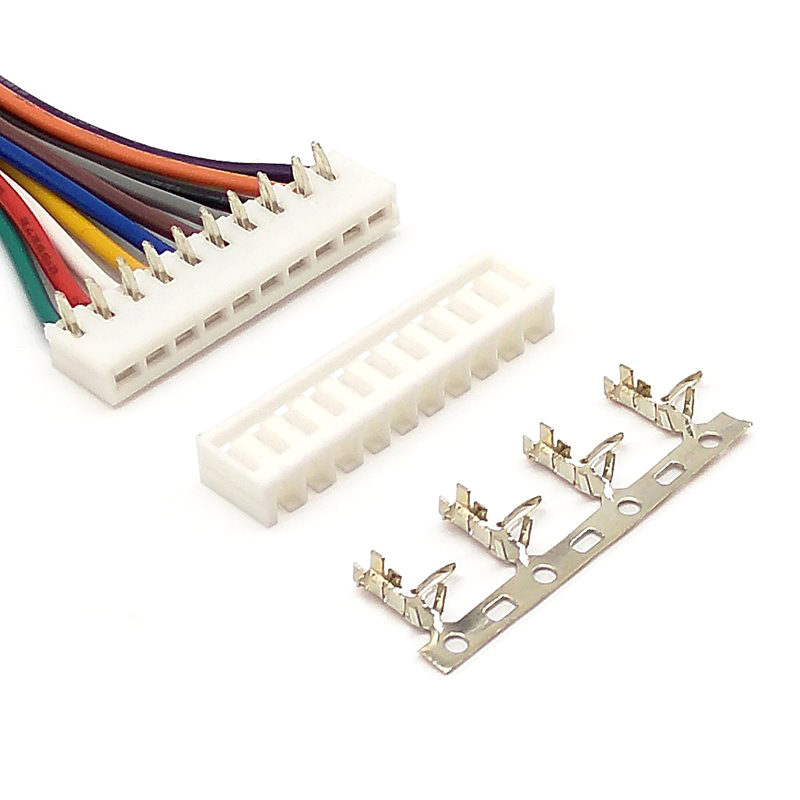

R2550 Series｜2.50mm 02-20P 90° Board in Connector
R2550 Series｜2.50mm 02-20P 90° Board in Connector R2550-xxPR-J｜Outline Drawing｜2.50mm Board-in Connector R2553-BT-R｜Outline Drawing｜2.50mm 90° Board-in Crimp Terminal
R2550 Series｜2.50mm 02-20P 90° Board in Connector

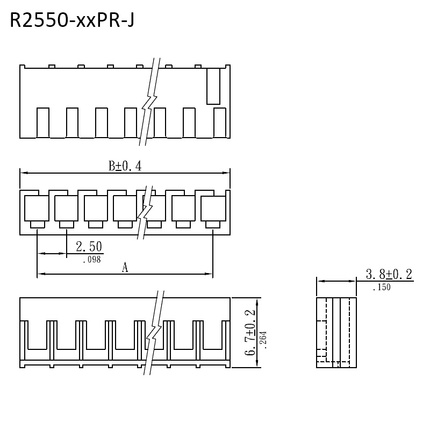

R2550-xxPR-J｜Outline Drawing｜2.50mm Board-in Connector

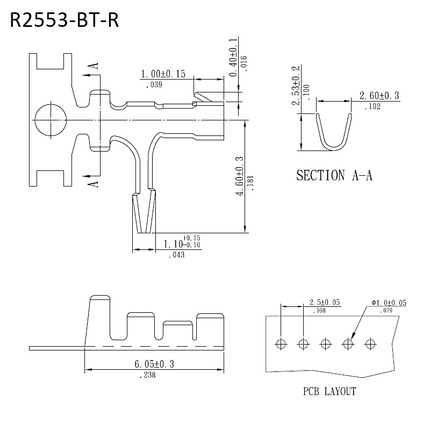

R2553-BT-R｜Outline Drawing｜2.50mm 90° Board-in Crimp Terminal

R2550 Series

2.50mm 90° Board in Connector

  • Housing : R2550-xxPR-J
  • Terminal : R2553-BT-R
  • Circuit : 02-20
  • Insulator : Nylon 66, UL 94V-0
  • Applicable wire : 22-28 AWG
  • Insulation O.D : 1.90mm Max.
Download

View More Details
Specification
Temperature range：-25°C ~+85°C
Current rating：3A
Voltage rating：250V AC
Dielectric withstand voltage：1000V AC/minute
Insulation resistance：1000MΩ Min.
Safety/Quality Approvals
R2550 Series RoHS Compliant
